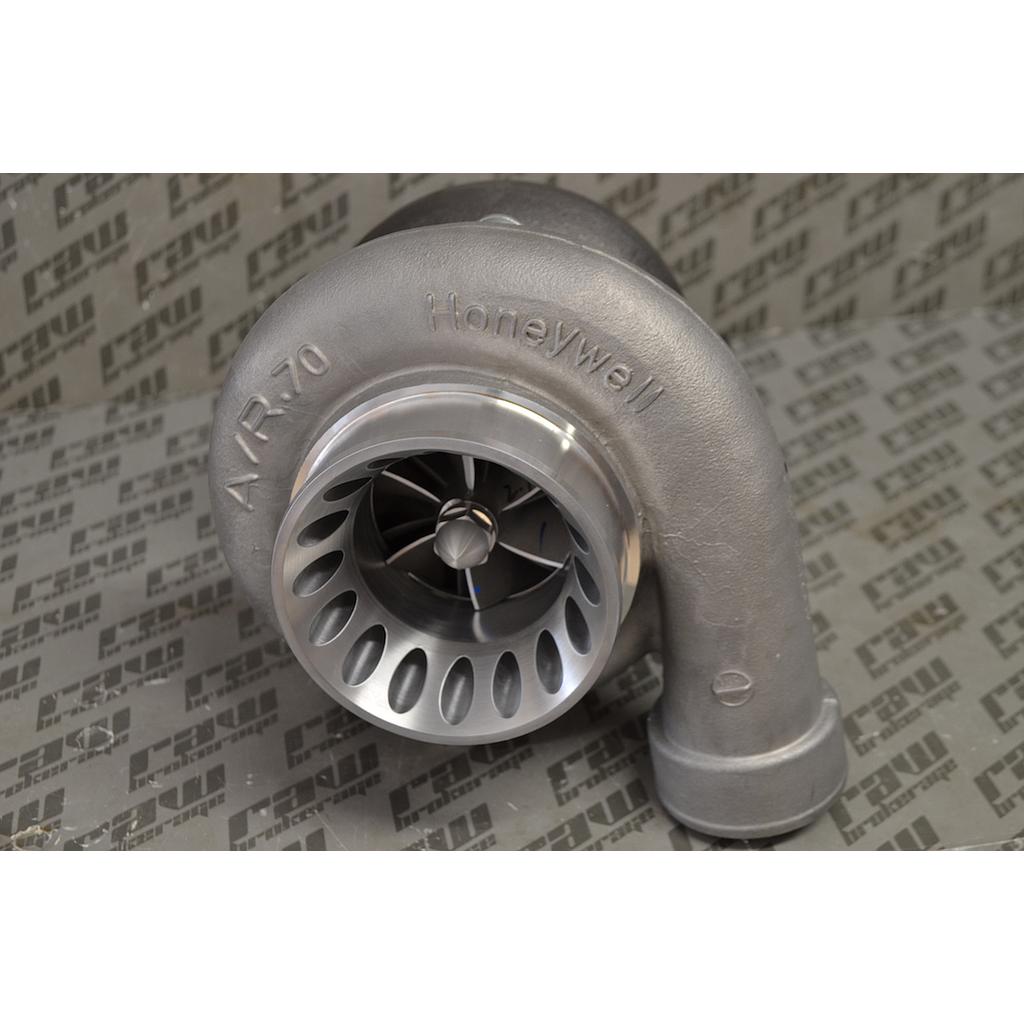

Garrett T04Z Ball Bearing Turbo
Dual Ball Bearing Garrett To4Z . 700-750HP flow potential. Compressor wheel diameter is 84mm exd. / 66.7mm ind. (63trim) Compressor housing is .70 A/R has a 4" inlet and 2.5" outlet slip on connection. Flexible range of T4 Turbine housings available in divided and undivided entry, all with standard 3" V-band discharge. Available Divided T4 Housing A/R, .70, .84, 1.00, 1.15, Undivided T4 .61, .70, and .96 A/R as well as T31 (T3) with 4 bolt outlet now available in .63 and .82 A/R.
Turbine
-Wheel: 74.2mm w/ 76 trim
-T4 Divided Housing A/R: .70, .84, 1.00, 1.15
-T4 Undivided Housing A/R: .61 and .70
-T4 Undivided Housing with 3 inch V-band Outlet A/R: .96
-T31 (T3) inlet, 4 bolt Housing A/R: .63 and .82
Compressor
-Wheel: 84.0mm exd./66.7mm ind w/ 63 trim
-Housing: 0.70 A/R
Turbo by Garrett
| Turbine Wheel OD (mm) | 74.2 |
| Compressor Wheel OD (exducer) (mm) | 84.0 |
| Compressor Wheel Inducer (mm) | 66.7 |
| Turbine Inlet Flange | T4 Divided (Twin Scroll), T4 Undivided, T3 (T31), SS TiAL Compatible V-Band |
| Turbine Outlet Flange | V-Band |
